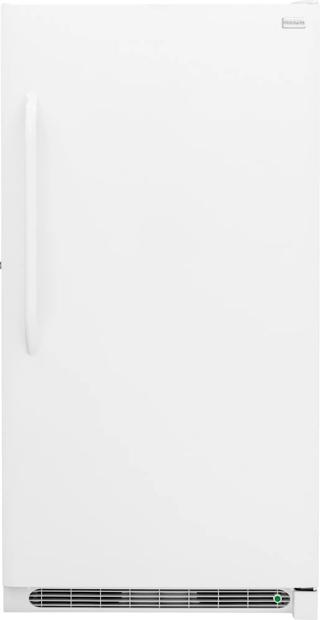

Frigidaire 16.6 Cu. Ft. Upright Freezer
  • bvseo_sdk, net_sdk,
  • CLOUD, getAggregateRating, 94ms
  • bvseo-msg: The resource to the URL or file is currently unavailable.;
This is a discontinued product
Frigidaire 16.6 Cu. Ft. Upright Freezer

Already own this appliance? Join the Frigidaire Family and unlock benefits with YOU in mind.

Register your appliance to unlock helpful tips and information on your product to keep it running great.

Get fast, easy personalized support right when you need it.

Unlock exclusive offers and everyday home inspirations.

Trusted service and support

A lot can happen during the lifetime of your appliance, so we’ve made maintaining your appliance easy with quick links to support.

Explore Our Site

Visit our Resource Library to find Product FAQs, Videos & More.

Get Appliance Resource

Service & Repair

Our technicians are factory trained on all of our products, so they can repair your appliance ASAP.

Find Service

Replacement Parts

Buy Factory-Certified parts directly from Frigidaire, your trusted source for your replacement parts.

Shop Replacement Parts

Service & Support. On Your Terms.

Welcome to a better way to protect your appliances with an Extended Service Agreement.

Protect Your Appliance
left arrow
right arrow


Freezer Specifications
Directional Airflow Ports: 1
Defrost: Frost-Free
Freezer Lighting: LED
Power Failure Alert: No
Fixed Freezer Shelves: 4 Wire
High-Temperature Alarm: No
Door Ajar Alarm: No
Soft Freeze™ Zone: No
Defrost Water Drain: No
Removable Trivet: 1
Fixed Door Racks: 5 Full-Width White
Retractable Pizza Shelf: No
Capacity (Cu. Ft.): 16.6
Total Shelf Area (Sq. Ft.): 11.6
General Specifications
Light Shield: Yes
Interior Light: Yes
Power On Light: Yes
Temperature Range: -10 to 10°F
Frost Free: Yes
PROP 65 Label: No
Annual Energy Cost (.12 / kWH): 52
Annual Energy (kWH): 431
Annual Cost (.1065 / kWH): TBD
Shipping Weight (lbs): 191
Condenser Type: Hot-wall
Sound Package: No
Leveling Legs: 2 Adjustable
Made In USA: Yes
Reconditioned: No
Electrical Specifications
Amps @ 120 Volts: 5
Connected Load (kW Rating) @ 120V: 0.6
Voltage Rating: 115V 60Hz
Plug Type: NEMA 5-15P
Power Supply Connection Location: Right Rear Bottom
Minimum Circuit Required (Amps): 15A
Exterior Specifications
Lock with Pop-out Key: Yes
Door Style: UltraSoft™
Rear Rollers: No
Name Badge: Frigidaire
Reversible Door: No
Door Swing Type: Right-Hand Swing
Front Rollers: No
Door Closers: Yes
Handle Design: New Frigidaire Plastic
Cabinet Color: White
Door Gasket: White
Door Hinge Covers: White
Exterior Dimensions
Depth with Doors (no Handles): 28-1/2"
Height with Hinges and Covers: 67-11/16"
Depth with Doors (no Handles): 28-1/2"
Depth (with Door 90° Open): 60-1/4"
Height with Hinges and Covers: 68-1/2"
Height: 67-1/4"
Depth with Doors and Handles: 32-1/8"
Case Depth: 24-3/8"
Case Height: 65-1/8"
Width: 34"
Depth with Doors and Handles: 32-1/4"
Depth: 25-1/2"
Case Width: 32"
Certifications & Approvals
CSA Certified: TBD
CSA Rating: Household
Sabbath Mode (Star-K® Certified): No
ETL Listed: No
ADA Compliant: No
NSF® Certified: No
CSA Listed: Yes
ENERGY STAR® Certified: Yes
Marketing Awards Editors Choice Award: 2015
Door Finish
Door Finish: Smooth
Ice Maker
Ice Maker: No
Control Lock: No
Controls: Mechanical
Temperature Display Mode: 2015-01-07
Adjustable Temp. Control: Mechanical Dial
Front Digital Display: No
Supplemental Freeze: No
Control Location: Interior
