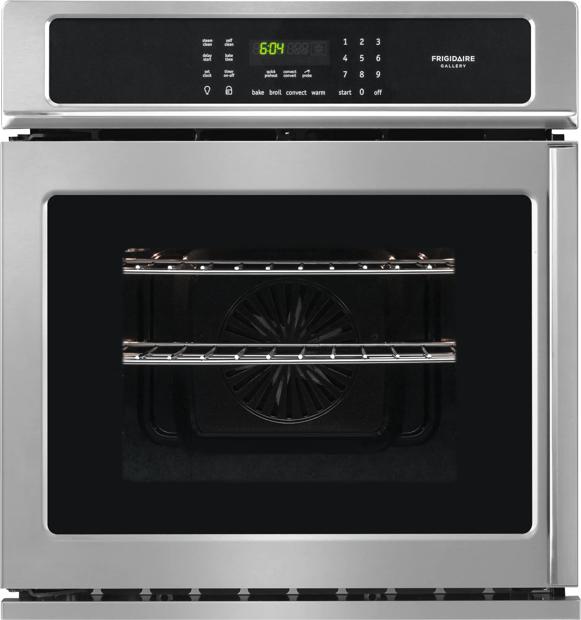

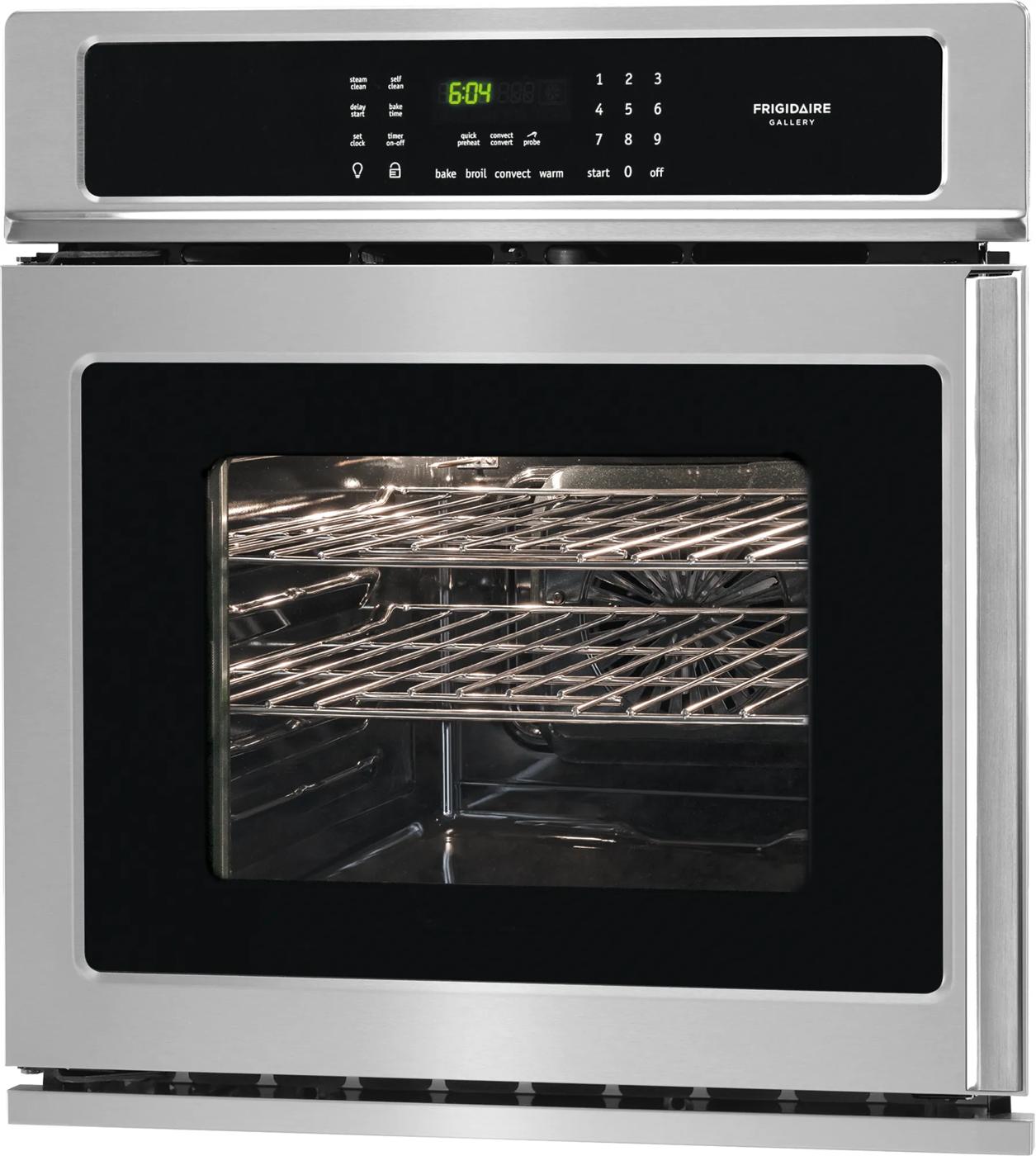

Frigidaire Gallery 27'' Single Electric Wall Oven

27" W x 24" D x 29" H
FGEW276SPF

ADA
Also Available In
  1. black
  2. stainless steel

Features

Vari-Broil™ Temperature Control

Allows you to choose between two heat levels.

True Convection

Single convection fan circulates hot air throughout the oven for faster and more even multi-rack baking.

Power Broil

Added power means you can broil food more evenly.

Smudge-Proof™ Stainless Steel

Resists fingerprints and cleans easily

One-Touch Self Clean

Start the self-cleaning cycle with just the touch of a button.

One-Touch Keep Warm Setting

Just one touch of a button keeps food warm until everything — and everyone — is ready.

Delay Start

Set your oven to begin cooking on your schedule. It can be programmed from one to 24 hours.

Express-Select® Controls

Easily set cooking temperature or choose one-touch cooking options.

ADA Compliant1

Star-K® Certified

Dual Radiant™ Baking and Roasting

Specifications

General Specifications

  • Product Weight (lbs): 127
  • Shipping Weight (lbs): 145
  • Power Type: Electric
  • Size: 27''
  • Installation Type: Built-In
  • Collection: Frigidaire Gallery

Capacities

  • Oven 1 Capacity: 3.8

Dimensions: Exterior

  • Depth(w/ 90° Door Open): 50-3/4"

Certifications & Approvals

  • Sabbath Mode (Star-K® Certified): Yes
  • ADA Compliant: Yes
  • Agency Approval: UL/CSA

Oven Specifications

  • Oven 1 Type: Main
  • Oven 1 Bake: 1450 Watts
  • Oven 1 Broil: 6 pass 3400 Watts
  • Oven 1 Broiling System: High - Low
  • Oven 1 Interior Lighting: Halogen
  • Oven 1 Rack Configuration: 2 Handle
  • Oven 1 Rack Positions: 5 positions embossed
  • Oven 1 Interior Height: 17"
  • Oven 1 Interior Width: 20-1/2"
  • Oven 1 Interior Depth: 19-3/8"
  • Oven 1 Interior Color: Midnight Black
  • Oven 1 Cleaning System: Self-Clean
  • Oven Window: Large

Electrical Specifications

  • Power Supply Connection Location: Rear Bottom
  • Voltage Rating: 240V / 208V 60Hz
  • Connected Load (kW Rating) @ 240V: 3.7 / 2.8
  • Amps @ 240 Volts: 15.4 / 13.4
  • Minimum Circuit Required (Amps): 20A

Cooking Controls

  • Bake: Yes
  • Broil: Variable
  • Chicken Nugget Button: No
  • Convection Conversion: Yes
  • Delay Bake: Yes
  • Keep Warm: Yes
  • Pizza Button: No
  • Preheat: Integrated with Bake
  • Quick Bake: Yes
  • Quick Preheat: Yes
  • Self-Clean: 2 3 4 Hours
  • Delay Clean: Yes
  • Interface: Membrane
  • Oven Light: Yes
  • Temperature Probe: Yes
  • Add-a-Minute: No
  • Start Time: Multiple Functions
  • Timer: Yes
  • Cook Duration: Yes
  • Numerical Keypad: Yes

Oven

  • Baking System: Radiant (True Hidden)
  • Convection: 2500 Watts

Installation

  • Under Counter Approved: Approved

Controls

  • Keep Warm Setting: Yes

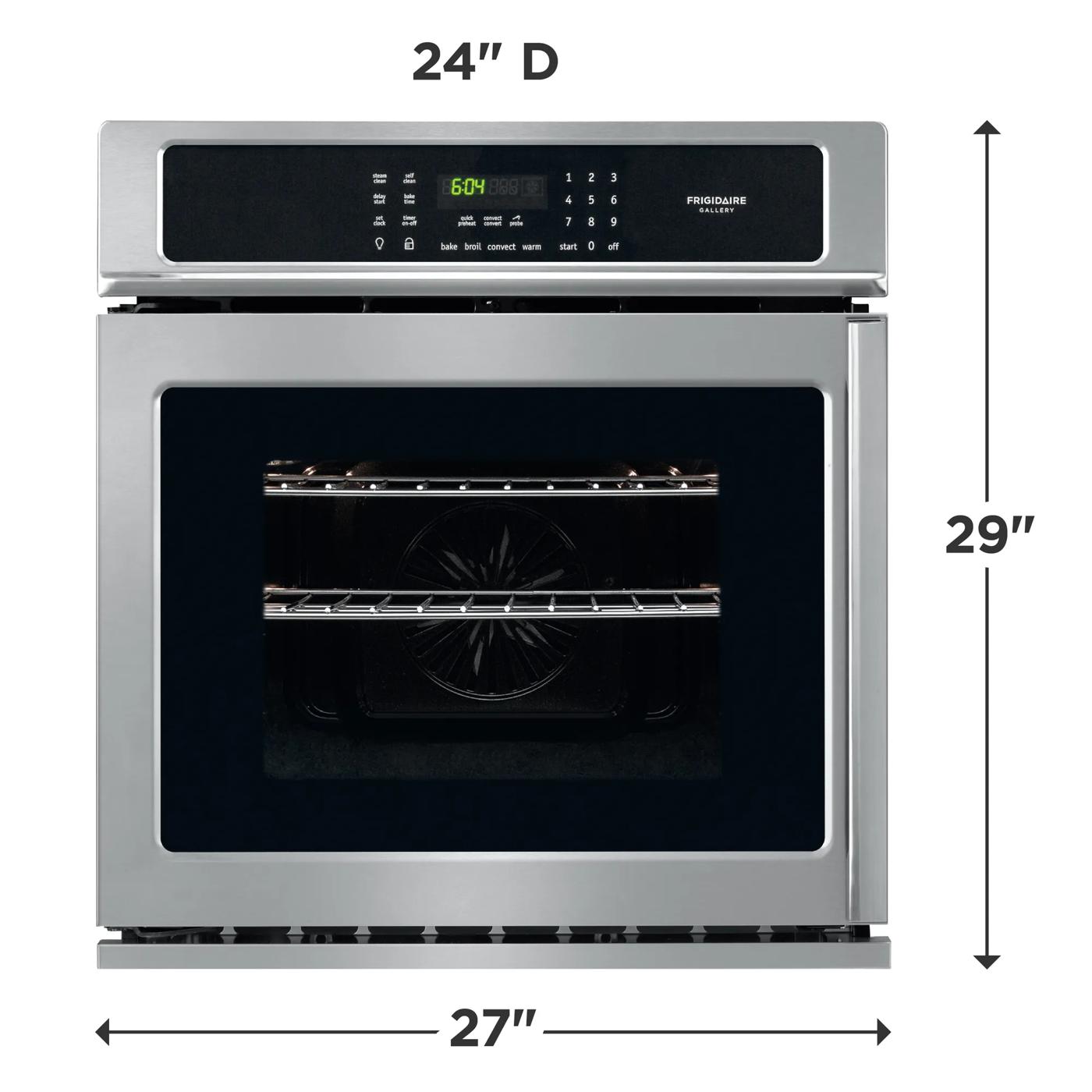

Exterior Dimensions

  • Height: 29"
  • Width: 27"
  • Depth: 24"

Cut-Out Dimensions

  • Cut-Out Height: 27-1/4" - 28-1/4"
  • Cut-Out Width: 24-7/8" - 25-1/4"
  • Cut-Out Depth: 23-1/2"
